Performance and Versatility for Any Road

All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration.

BUILT A LA CARTE- The Fray chassis is the canvas upon which you can create your dream bike. Choose your favorite SES or Foundation wheelset, Handlebar, IN-Route Stem, and Aero Seatpost to achieve your perfect setup.

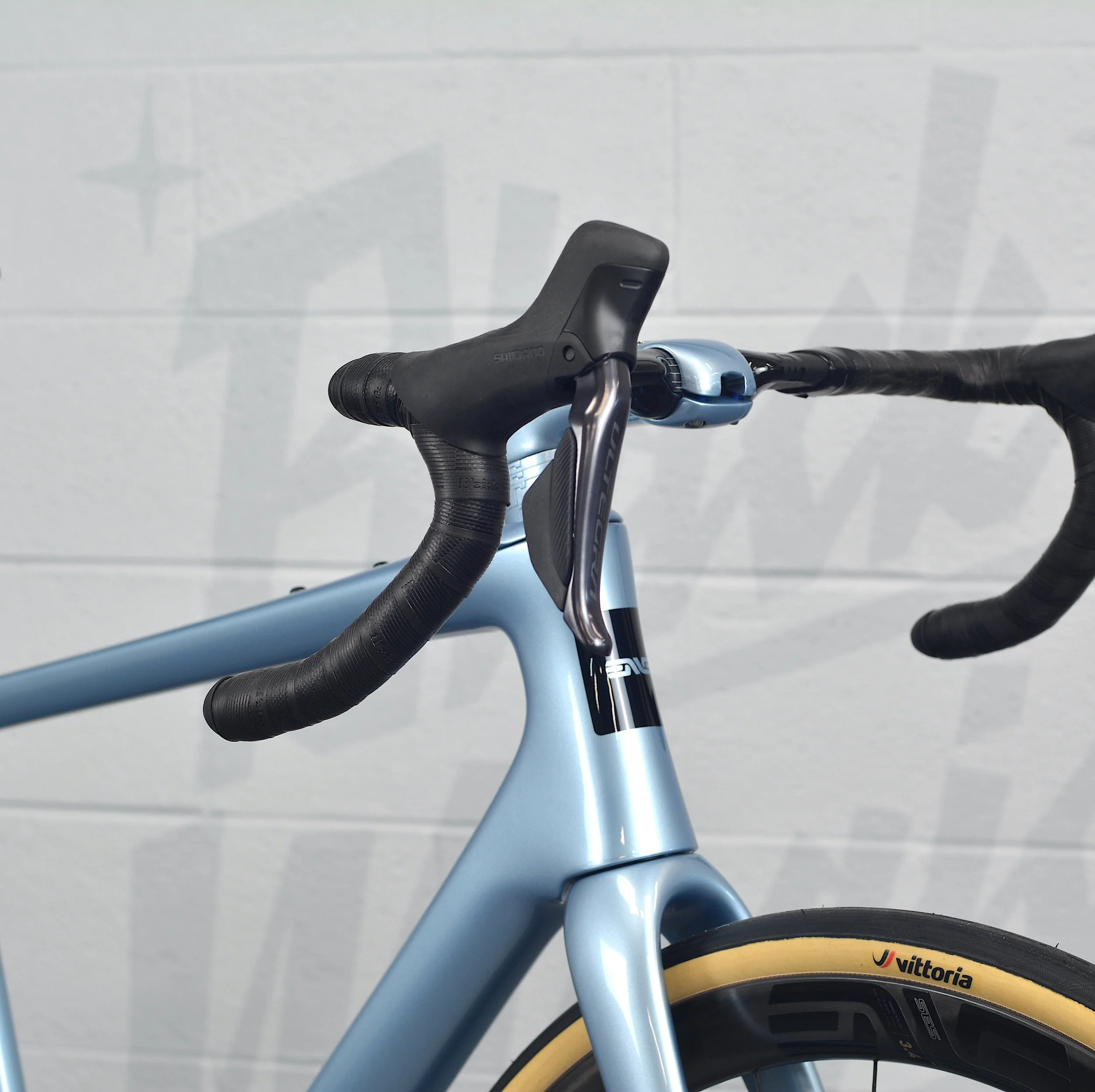

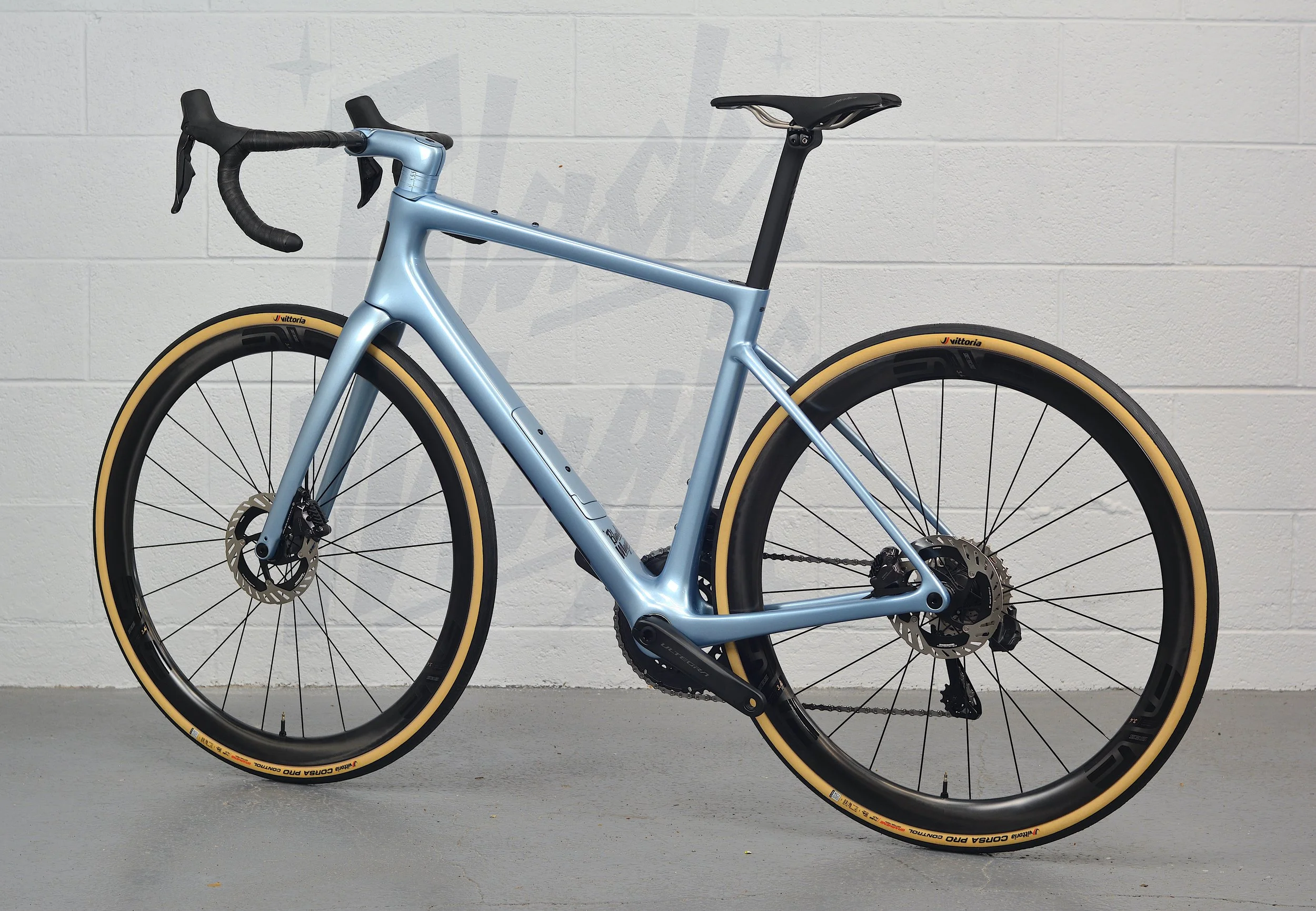

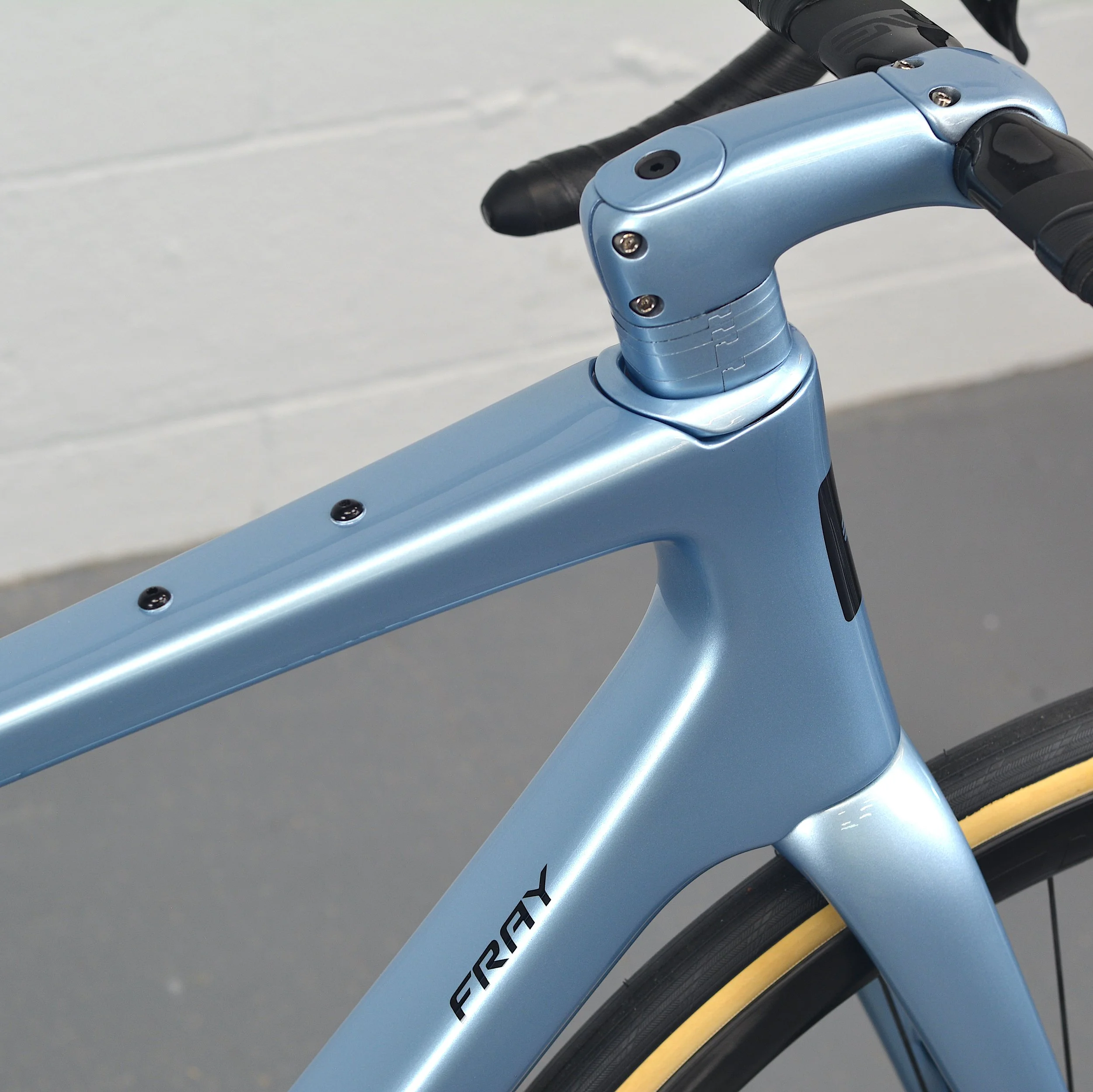

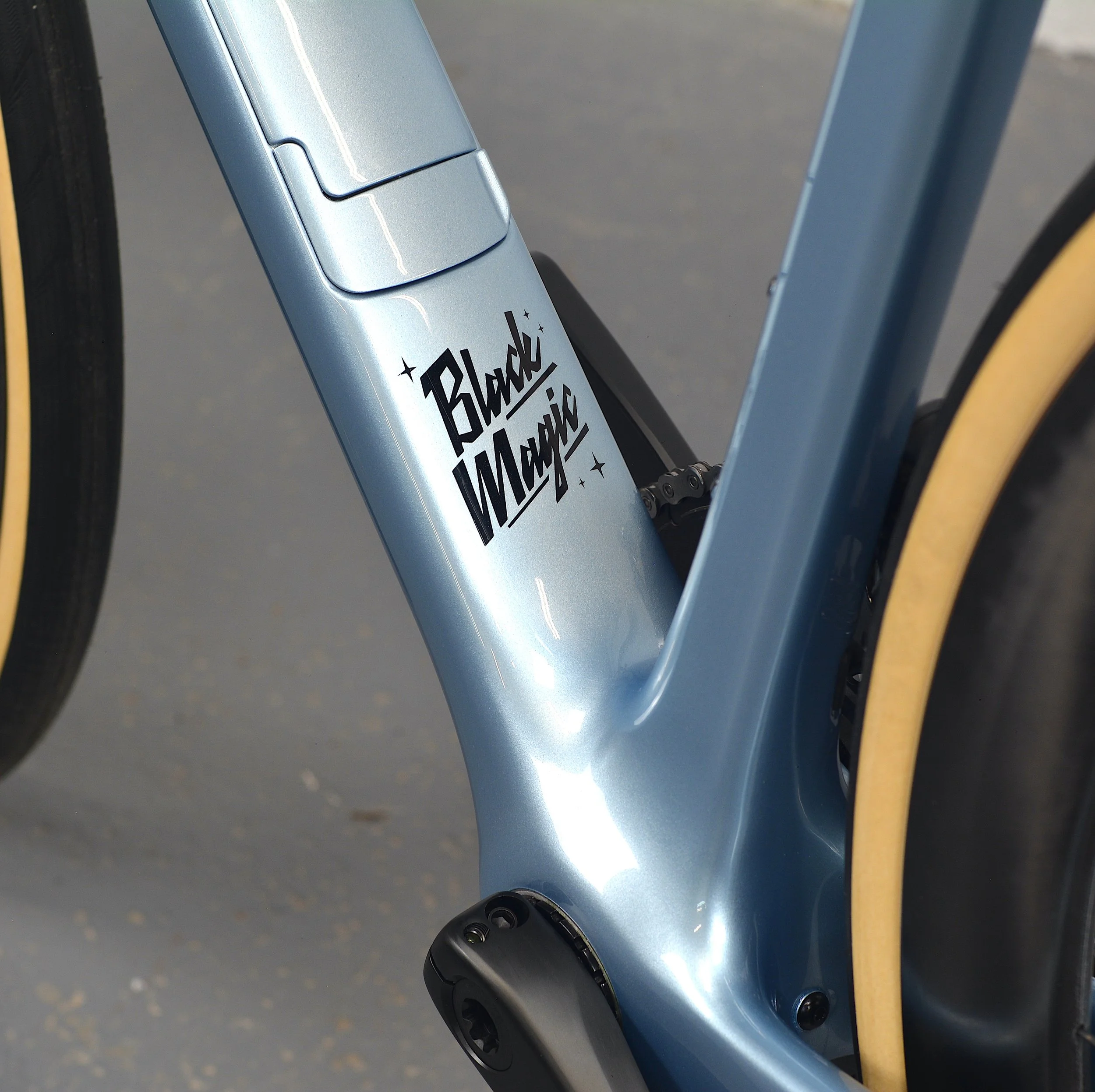

The Black Magic Classic Blue Edition features a unique light blue custom finish only available at Black Magic. Frame and fork are a light classic blue with a midnight blue/black color for graphics.

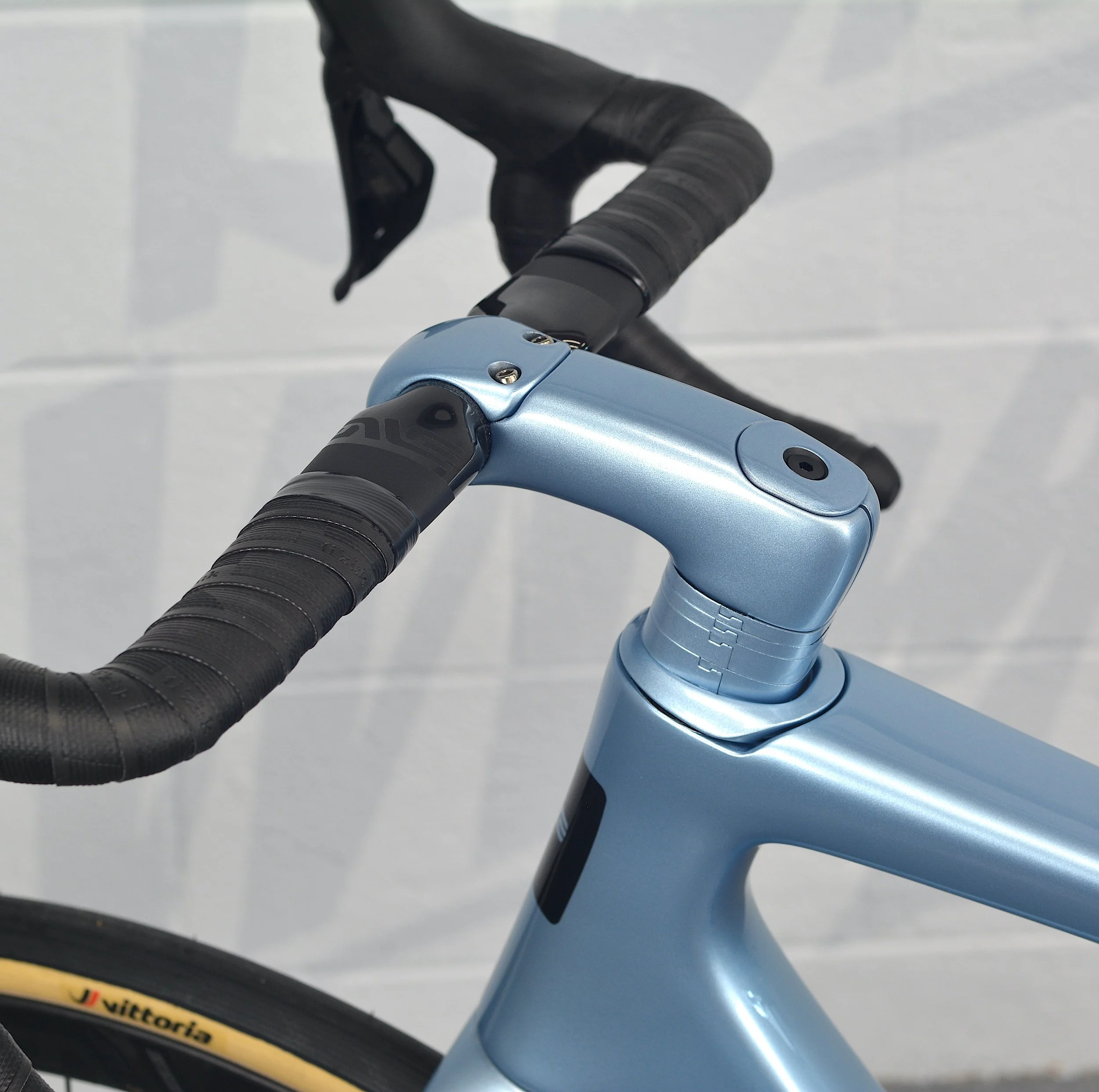

Optional custom painted stem and spacers shown (Additional cost).

We have put together some complete bike packages from SRAM and Shimano that are only available here at Black Magic Paint. All of these bikes will be built to order for the customer to allow for sizing of cockpit pieces, crankset, and choice of tire size at no additional cost. Since we are building these bikes for each rider, we can also provide upgrades like ceramic bearings from Ceramicspeed, power meters, Garmin GPS/Taillights, alternative tire choices, and alternative/additional wheelset options. We will be in touch with each customer individually after the purchase to finalize sizing and details. Fully custom build specs are also available. Please call or email for any questions about upgrades/changes to the build.

Also Available in stock Ash, Salt, Venom or with a personalized custom a finish.

ENVE Fray’s can be fully customized with custom paint. Please call or email for more information.

Bikes will be shipped fully adjusted and 95% assembled in an oversized container. Simply install your wheels (s) and seatpost and you’ll be ready to ride. Most sizes/configurations ship in approximately 2 weeks for stock finishes, 3-4 weeks for custom and special edition finishes.

Chassis Specifications

• Real-World Fast™ aero optimization

• Geometry optimized for 31mm - 35mm tires

• Tire clearances fits up to a 700 x 40mm (1x), 700 x 38mm (2x)

• ENVE Cargo Bay integrated downtube storage allows in-frame storage solution

• Top tube and downtube mounts for adding bags, bottle cage, tools, or any other gear needed to tack on for big adventure rides

• Aero tube shapes & design that complements SES rim shapes

• Universal Derailleur Hanger (UDH) compatible allows choice of drivetrain

• Frame Weight 900g (Size 56cm Painted, No Hardware)

• Frame Material ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible

• Fork Material ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible

• Target Application All Road / Endurance / Mixed Surface / Sportif / Fondo

• Sizes (cm) 47, 50, 52, 54, 56, 58, 60

• Fork Rake Size specific 55, 51, 47, 43

• Frame Size/Fork Rake 47cm/55, 50cm/55, 52cm/51, 54cm/51, 56cm/47, 58cm/47, 60cm/43

• Frame Weight 900g +/- 2% (Size 56, Stock Finish, No Hardware)

• Headset ENVE Integrated IS52/IS52 Internal Drop-In

• Headset Bearing 1.5″ IS52 Upper and Lower

• Seat Post Diameter ENVE Aero

• BB Type T47 Inboard Bearing

• Brake Mount Flat Mount

• Front Axle 12×100 (Total Length: 122, TP:1.5, TL:15)

• Rear Axle 12×142 (Total Length: 168, TP:1.0, TL:14)

• Minimum Tire Size 27c

• Optimal Tire Size 31c-35c

• Maximum Listed Tire Clearance (1X) 40mm

• Maximum Listed Tire Clearance (2X) 38mm

• In-Frame Storage Yes (2 Storage Bags included - 18.22 cubic cm each)

• Frame Routing Internal

• Waterbottle Capacity 3

• Top Tube Mounts Yes

• Fender Compatible Yes (with additional fender kit)

• Wheel Size 700c

Component Specifications

• Frame ENVE Fray

• Fork ENVE Fray

• Rear derailleur Shimano Ultegra Di2

• Front derailleur Shimano Ultegra Di2

• Shifters Shimano Ultegra Di2

• Brakes Shimano Ultegra Di2 . MT-800 Rotors 160mm front & rear

• Crank Shimano Ultegra Di2

• Chainrings Shimano Ultegra Di2

• BB Token T47

• Cassette Shimano Ultegra CS-R8100-12

• Chain Shimano Deore XT CN-M8100

• Headset Spacers ENVE Integrated

• Stem ENVE Integrated Carbon Road

• Handlebar ENVE Composites SES AR Carbon Integrated, Aero Integrated, or Compact Integrated

• Seatpost ENVE Composites Carbon Road, 27.2mm

• Wheelset ENVE Composites Foundation or SES INNERDRIVE

• Tires Vittoria Corsa Pro Control Tire - 700 x 34, Tubeless, Black/Para

• Tubeless Sealant Orange Seal Endurance

• Saddle ENVE x Selle Italia Boost SLR Saddle Ti

• Bartape ENVE Composites-Black

• Extras Di2 Battery Charger Included

  *Specifications are subject to change due to supply and photos may not always 100% represent current specs listed above*
